Scissor Lift Capacity Chart: Understanding Load Limits and Platform Sizes

Industrial machines, construction equipment, warehouse management systems do need precision especially while working at heights. Picking the right aerial work platform is a matter of going through the specs that will help decide equipment failure or balance disruption risks. First and foremost, the Egyptian platform for scissor lift capacity chart is a reference book that safety engineers, warehouse admins, and engineers use to keep updated about lifting limits of various equipment.

To be specific, a scissor lift is a platform that can be raised or lowered to work indoors or outdoors at different heights, and scissor lift load charts are often used as a reference to find lifting characteristics of the type of the lift, the limits of lifting capacity, time of working, maximum reach, and platform size.

The use of a scissor lift without comparing one’s performa with the benchmark of the manufacturing load factor may put in jeopardy the safety of the site and result in a tip-over of the equipment or total failure of the hydraulic system.

Balancing the weight limit and surface area of the scissor lift is a good measure to avoid overloading with weights. Each model has a limit that is financially backed by its mechanical arms and base configuration.

Thus, if these limits are exceeded even changes in the overall center of gravity can result in a mishap. The following is a guide to reading a scissor lift capacity chart, getting at platform sizes, and safety margins.

What Is a Scissor Lift Capacity Chart?

A​‍​‌‍​‍‌​‍​‌‍​‍‌ scissor lift capacity chart is a formal engineering document supplied by original equipment manufacturers (OEMs). It defines the working limits of a particular model through a specification of how the load is limited as the lifting height and configuration vary.

Such papers depict different weight scenarios, for example, differences in weight due to spread out people, loosely placed machinery, and heavy construction ​‍​‌‍​‍‌​‍​‌‍​‍‌materials.

• Engineering Parameters: It lists the maximum limit that the hydraulic system, the scissor arms, and the structure of the base frame can support without the material undergoing any stress or degradation.
• Environmental Variance: The chart shows the changes in the load capacity of equipment when it is moved from indoor, level-concrete slabs to outdoor, uneven/rough terrains.
• Regulatory Compliance: Using these charts is one way of being compliant with health and safety requirements.

You cannot derive the maximum allowable weight by just adding up the weights of the operators since it also includes heavy duty tools, various components, construction materials and even accessories attached to the main work deck.

Decoding Weight Ratings: Occupants, Tools, and Materials

Going through a scissor lift capacity chart, the most important thing is to break down the lifting capacities of a machine into different components to arrive at the actual load that can be placed on the deck. A lift model that has the highest capacity rating is not necessarily capable of supporting the full load if it is concentrated in a single spot on the platform.

• Personnel Capacities: Number of operators working on the deck at the same time is usually mentioned by the manufacturers from 1 occupatnt for compact indoor units to 5 and more for heavy duty rough terrain systems.
• Distributed Load Vs Point Load: A capacity chart is based on the premise that the load is spread over the platform floor rather than concentrated in one corner or near the guardrails.
• Material Management Allowance: Besides factoring in the weight of materials and equipment, operators also need to consider the weight of pallets, tubular conduit, light fixtures, or mechanical parts so as to avoid hydraulic valve trips.

Weight limit charts for various kinds of lifting units (electric indoor scissor lifts, electric rough terrain scissor lifts, and boom lifts) show the following general capacity breakout:

Ignoring the ratio of material to personnel can either stopp operations or lead to an uneven distribution of weight.

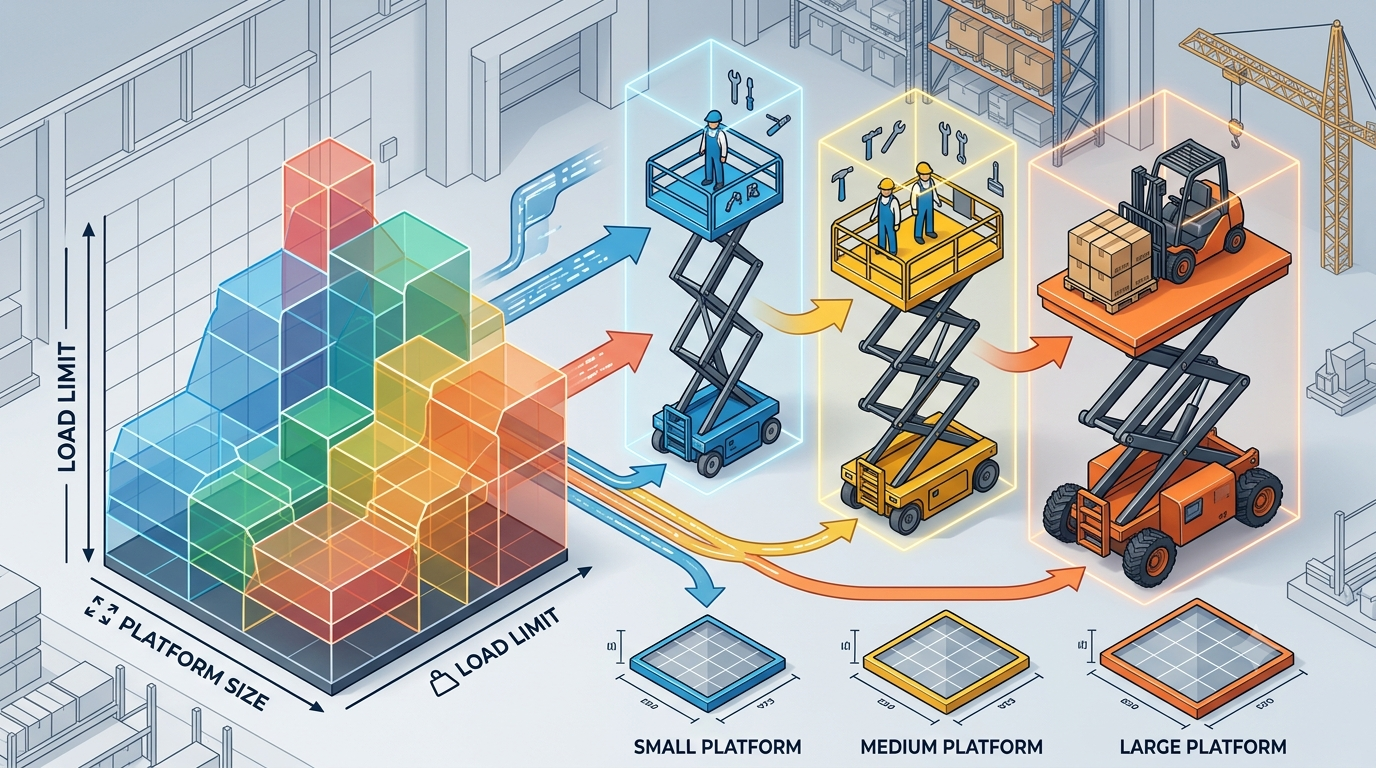

Effects Of Platform Sizes and Extension Decks

Platform size determines the spatial usage and weight distribution of a lift.

• Standard platform dimensions: Compact lifts for indoor use have platforms that are 30 to 36 inches wide, while giant rough terrain lifts passenger platforms/enclosed cabins can be over 70 inches wide for accommodating larger teams.
• Extension Decks: A large number of modern scissor lifts come with slide-out extension decks that provide additional horizontal reach over obstacles. Capacity charts note, however, that loading capacity on these cantilevered platforms is lower than the main platform capacity.
• Overhanging Load Risks: Hanging materials beyond guardrails causes safety risks like dizziness, limits, and hampers guide rail performance or platform stability. Potential disasters include falls caused by exposed parts and drifting of the lift due to wind resistance.

There is a typical lift that can be onboarded with 1,000 pounds on the main deck but only 250 pounds on the extension deck. Putting more than the maximum allowed on the cantilevered portion will cause unbalance, lever effect and highly stressed scissor pins, which can be pretty dangerous.

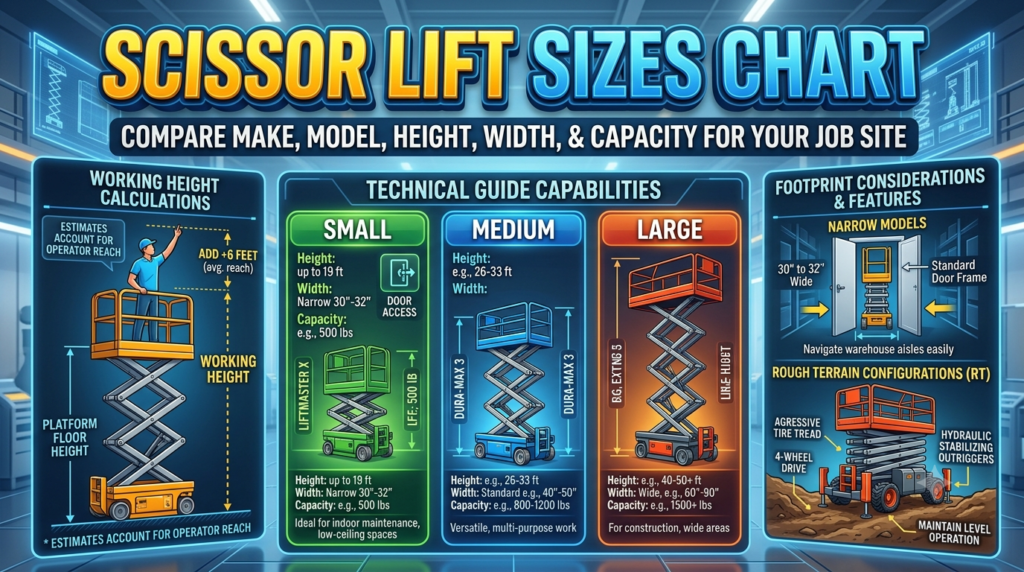

Scissor Lift Size Chart Calculations

Indexing a machine by its make, model, height, width, and capacity can be advantageous when choosing a scissor lift for an acute job-site. Here is a technical guide showing the capabilities of small, medium, and large machines.

• Working Height Calculations: Working height estimates add roughly six feet to the platform floor height, accounting for an average operator’s upward physical reach.
• Footprint Considerations: Narrow models (30 to 32 inches wide) are designed to pass through standard commercial door frames and navigate tight warehouse aisles.
• Rough Terrain Configurations: RT models feature wider footprints, aggressive tire treading, four-wheel drive systems, and hydraulic stabilizing outriggers to maintain level platform operation on uneven soil.

Key Factors That Alter Your Real-World Capacity Limits

Below are some examples from real-world work situations of how factors other than weight influence your capacity limits:

The chart upon which the listed capacities are based depicts maximum allowable limits under ideal, controlled conditions. Construction sites are dynamic environments with natural environmental forces that can affect the theoretical weight values of scissor lifts.

• Wind Speed Interruption: Wind is a very dangerous factor in outdoor operations of aerial lifts. Lifts rated for outdoor use are generally not permitted to be used in wind with speeds higher than 28 miles per hour (about 45 km/h). If the wind speed exceeds the requirement, it can cause platform sway severely.
• Side-Load Forces: Loading the work deck externally by pushing or pulling heavy objects (e.g. the use of a drill on a concrete wall or pulling heavy electrical cables) will lead to lateral forces that are beyond the detection of the vertical weight sensors.
• Chassis Inclination and Tilt: Tilting the chassis to the sides, even by a little, causes the center of mass to move with it. Automatic tilt sensors are one of the ways in which many modern scissor lifts detect and disable raising functions when the chassis tilts beyond production limits (2 to 3 degrees).

Combining several loads—for example in the case when an operator is applying a side force on a platform that is fully extended during a gusty day—the actual safe load capacity is less than even the baseline chart rating.

Industry Safety Standards and Maintenance Mandates

When it comes to maintaining the mechanical and structural integrity of scissor lifts, the emphasis is on routine performance checks and OSH&A and ANSI regulations compliance, among others. Regular care of essential components is vital to prevent mechanical failures of a serious nature.

• Pre-Operation Inspections: Leaving a hydraulic line leaking, checking a weld cracking on the scissor arms, verifying that emergency stop are working, locking guardrail pins correctly are some of the things inspects should be able to find out.
• The Danger of Non-OEM Alterations: Changing guardrails by adding wood shelves, heavy material racks, or welding accessories can permanently change the center of gravity of the lift and void the manufacturer certifications.
• Outrigger and Stabilizer Deployment: In order for high reach rough terrain lifts to get full capacity at an uneven ground, it is necessary to carry out the extension of hydraulic outriggers.

Adhering to these structural procedures not only protect crews from untimely injuries, but also enables equipment fleets to be operational, reducing the downtime due to mechanical parts wear or pauses due to penalties.

Frequently Asked Questions – Master the Scissor Lift Capacity Chart

What is the standard weight capacity of a 19-foot scissor lift?

The standard capacity for a 19-foot electric scissor lift (think Genie GS-1930 or JLG 1930ES or TYPHON STOMP scissor lift models) is about 500 lbs (227 kg). This figure is designed to allow safely two workers carrying light hand tools, or one worker with moderate installation supplies. Always check the machine’s ID plate, because some models that are narrow or light-weight might have lower capacities.

Can you put more weight on a scissor lift if it is lowered?

Even if the scissor lift deck has been lowered, the maximum loading capacity as indicated on the capacity plate should not be exceeded.

How much weight can a scissor lift extension deck hold?

Extension decks generally have a significantly lower weight capacity than the main platform deck. For most standard electric models, an extension deck is rated to hold between 250 lbs and 300 lbs. This capacity is usually intended for a single operator or lightweight materials. Overloading this section creates an improper lever force that can damage the slide tracks and unbalance the chassis.

What happens if you overload a scissor lift?

Overloading a scissor lift brings about a chain of built-in safety breakdowns and mechanical failures. The integrated load-sensing systems present in modern lifts give out a sound signal and prevent all upwards or driving functions if the load limit has been exceeded. However, if these safety mechanisms are disregarded or fail, overloading can cause relief valves of the hydraulic system to burst, lead to bending of structural scissor arms or the tip-over of the lift.

What is the difference between platform height and working height?

Platform height is the actual vertical measure from the ground up to the floor of the work platform. Working height is an approximate measure that includes 6 ft (around 2 meters) to platform height for the reach of an average worker on the deck. When looking at charts, make sure you are using the metric that is most relevant to your site clearance needs.

Are scissor lift weight capacities different for indoor vs. outdoor use?

Absolutely, some scissor lift models have dual capacity ratings based on whether they are used indoors or outdoors. The platform is exposed to the elements including winds that can force the platform to sway. This necessitates the reduction of maximum load limits, the lowering of platform heights, and reducing the number of occupants.

How do I locate the official capacity chart on a scissor lift?

The official capacity chart, along with the model specification plate and safety warnings, is found in two main areas on the machine. There is a weather-resistant, durable placard affixed inside the platform guardrails near the joystick control box. Also, a metal serial plate containing shipping weights, capacities, and model numbers is riveted to the lower chassis frame.
